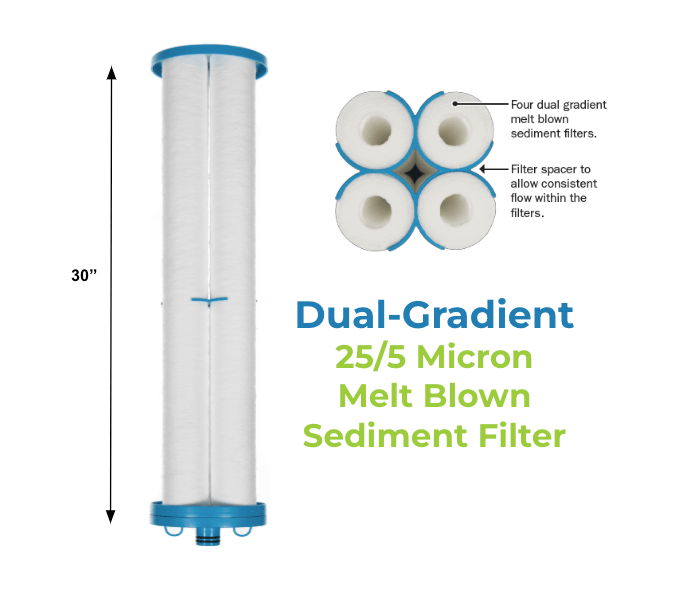

Dual-Gradient Melt Blown Sediment Filter 25/5 Micron

Dual-Gradient Point Of Entry (POE) Sediment filter

• 25 micron Outer Zone - High Capacity
• 5 micron Second Zone Sediment Filtration

56% MORE Filtration Surface than standard 30" Filters.

Dual gradient melt blown sediment filters are manufactured on state-of-the-art production equipment using a computer-controlled process to ensure reliability and performance.

Dual gradient depth filtration is achieved with our technically advanced die system. This design allows us to create two distinct filter zones. Larger particles are trapped and filtered out in the first zone and the smaller particles are trapped in the second zone. The tighter matrix of the inner zone also provides exceptional strength and functions as a self-supporting core, eliminating the need for a separate center core. The dual gradient design allows for optimum dirt holding capacity and reduced pressure loss.

Cartridge Tank dual gradient sediment filters are made of polypropylene resin meeting FDA regulation. No binders, lubricants, or anti-static agents are used in our manufacturing process. The inert polypropylene resin provides exceptional chemical compatibility to handle a wide range of process fluids.

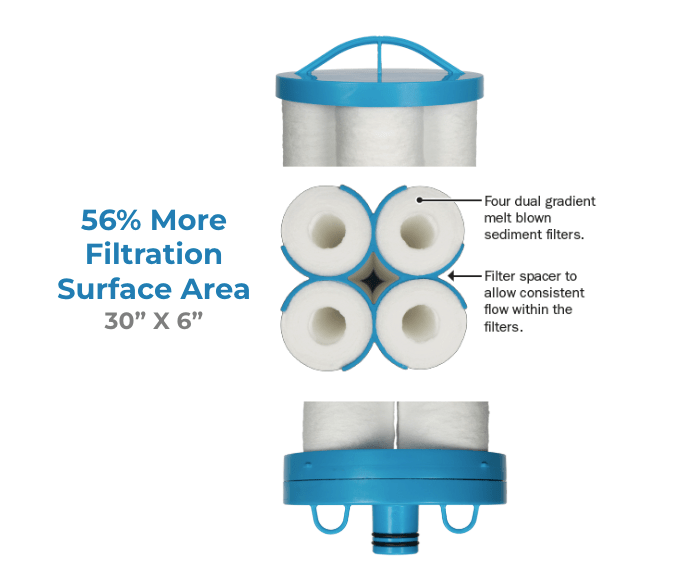

The four filter posts give an additional 56% more filtration surface area than an equivalent 30" length solid filter on the market.

FEATURES

• Proprietary manufacturing process
• Outer and inner Filter of polypropylene


BENEFITS

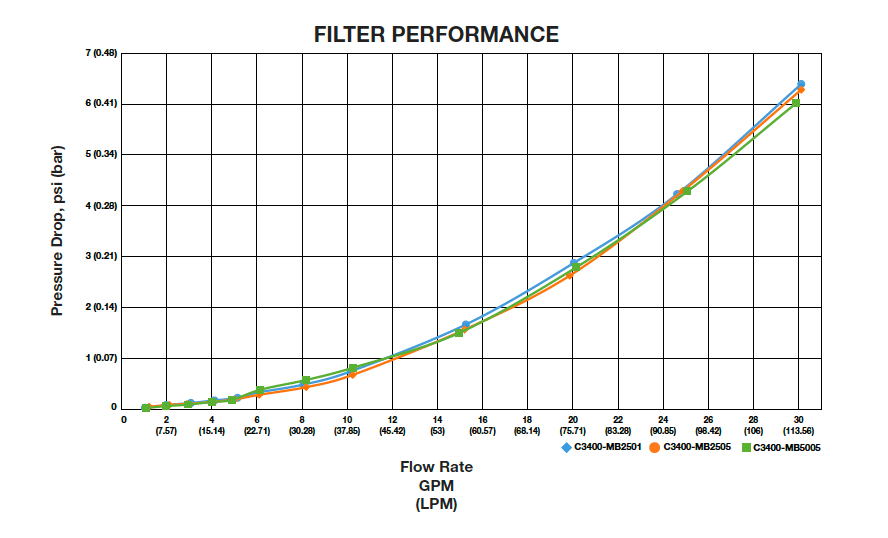

• Exceptionally low pressure drop
• High dirt holding capacity

• Excellent contaminant reductions

APPLICATIONS

• Ideal for residential new homes
• Ideal as pre-filters in applications requiring fine filtration and high capacity
